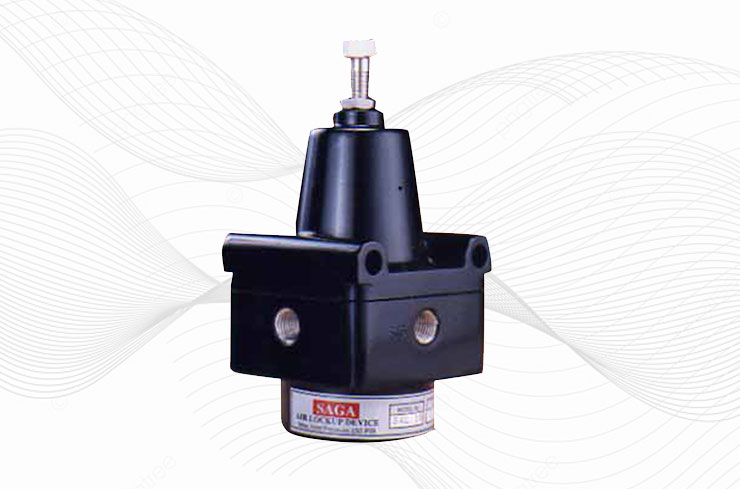

When the supply air pressure (air pressure linked to signal Port) falls below the specified value, the SAGA Air Lockup Device locks the Air and maintaining the Control valve in a stay-put position. To conserve space, Saga Air Lockup Devices are developed to be very concise.
| SPECIFICATIONS |
| Max Inlet Pressure |
250 Psi (18 kg/cm2 ) |
| Cut off Range |
5-30, 5-60, 5-100 Psi |
| End connections |
1/4" NPT(F) / BSP(F) |
| Weight |
750 Grams (Approx.) |
| Temperature |
Upto 80° C |
| MATERIALS |
| Body |
Pressure Die Cast Aluminium |
| Diaphragm |
Nylon Impregnated Neoprene |
| Range Spring |
Spring Steel |
| Valve |
Brass |
| Valve Seat |
Neoprene |
| MODEL NUMBER |
PRESSURE RANGE |
CONNECTION |
| SAL 13 |
5 - 30 PSI |
1/4" |
| SAL 16 |
5 - 60 PSI |
1/4" |
| SAL 10 |
5 - 100 PSI |
1/4" |
