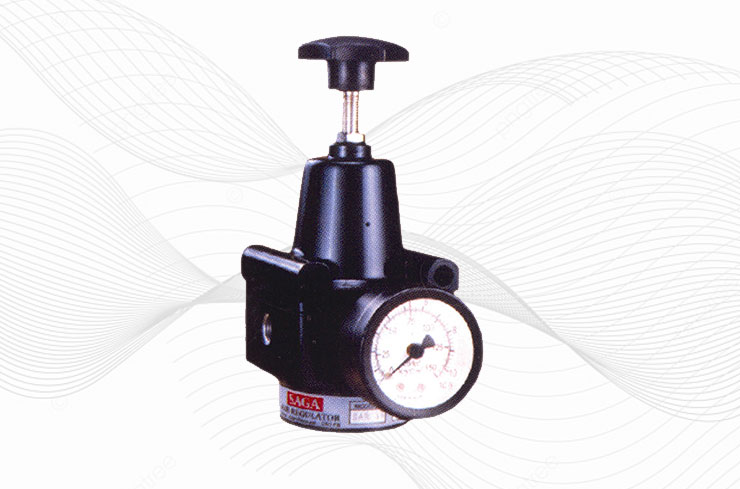

SAGA Air Pressure Regulators are developed to ensure precise control of compressed Air Pressure. Designed very concise to save space, it delivers substantial savings in Air consumption, consistent equipment performance, exceptional flow characteristics, greater flow capacity rate, reduced differential pressure and considerable service life. Our product is available at considerable cost.
| SPECIFICATIONS |
| Max Inlet Pressure |
250 Psi (18 kg/cm2 ) |
| Outlet Range |
0-30, 0-60, 0-100, 0-150 Psi |
| End connections |
1/4," 1/2," 3/8," 3/4," 1" NPT(F)/BSP(F) |
| Weight |
750 Grams (Approx.) |
| Temperature |
Upto 80° C |
| MATERIALS |
| Body |
Pressure Die Cast Aluminium
(Optional-Stainless Steel) |
| Diaphragm |
Nylon Impregnated Neoprene |
| Valve Spring |
Stainless Steel |
| Main Valve |
Neoprene moulded on Stainless steel
stem |
| MODEL NUMBER |
PRESSURE RANGE |
CONNECTION |
| SAR 13 |
0 - 30 PSI (0-2.1 Kg/Cm2) |
1/4" |
| SAR 16 |
0 - 60 PSI (0 - 4.2 Kg/Cm2) |
1/4" |
| SAR 10 |
0 - 100 PSI (0 - 7 Kg/Cm2) |
1/4" |
| SAR 15 |
0 - 150 PSI (0 - 10.6 Kg/Cm2) |
1/4" |
| SAR 20 |
0 - 100 PSI (0 - 7 Kg/Cm2) |
1/2" |
| SAR 25 |
0 - 150 PSI (0 - 10.6 Kg/Cm2) |
1/2" |
| SAR 80 |
0 - 100 PSI (0 - 7 Kg/Cm2) |
3/8" |
| SAR 85 |
0 - 150 PSI (0 - 10.6 Kg/Cm2) |
3/8" |
| SAR 30 |
0 - 100 PSI (0 - 7 Kg/Cm2) |
3/4" |
| SAR 35 |
0 - 150 PSI (0 - 10.6 Kg/Cm2) |
3/4" |
| SAR 40 |
0 - 100 PSI (0 - 7 Kg/Cm2) |
1" |
| SAR 45 |
0 - 150 PSI (0 - 10.6 Kg/Cm2) |
1" |
